Repair & upgrade
Collection of possible repairs and upgrades.
To be determined. Not tested yet.
Collection of possible repairs and upgrades.
To be determined. Not tested yet.

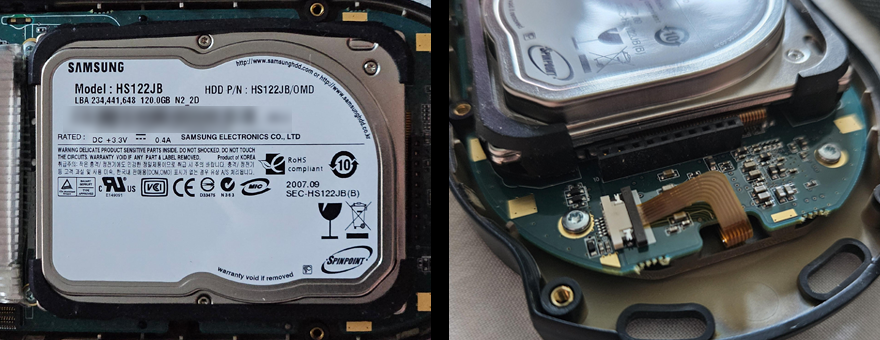

Upgrade hard drive
Upgrade to SSD (expensive):
SSD: KingSpec ZIF 40-pin SSD (Aliexpress)
Upgrade to CF or SD Card (cheap):
CF Card: CF Card To 1.8 Inch ZIF adapter (Aliexpress)
CF Card: CF Card To 1.8 Inch ZIF adapter (Amazon.se)
Optional CF Card to SD Card adapter (Aliexpress)
Optional CF Card to SD Card adapter (Amazon.se)
A screwdriver (Torx T6) is required to unscrew the 6 screws on the device back cover.
Warning: Be very careful when handling the ZIF cable. It is very fragile. Here is the specs of a new cable, if you need to buy a replacement: 40-pin ZIF ribbon cable FFC FPC 60mm.
Model P666: The stock hard drive is a Samsung HS060HB 60GB 4200rpm PATA ZIF HDD.
Model P211: The stock hard drive is a Samsung HS122JB 120GB 4200rpm PATA ZIF HDD.

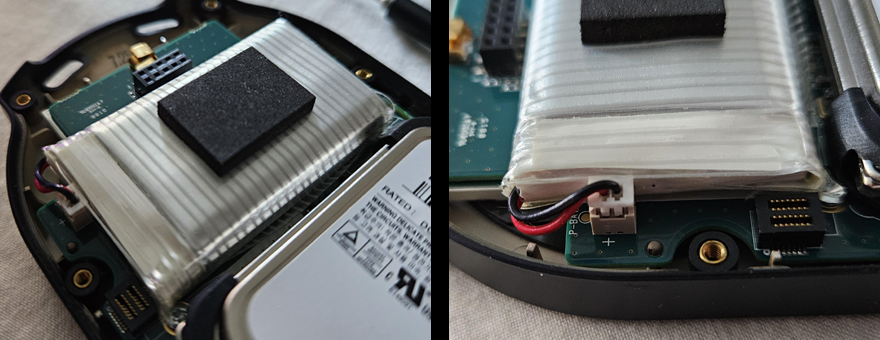

! Battery replacement
Replacement battery parts:
3.7V 1350mAh 803448 LiPo battery (Aliexpress)
3.7V 1350mAh 803448 LiPo battery (Amazon.se)
A screwdriver (Torx T6) is required to unscrew the 6 screws on the device back cover.
Warning: Make sure to check the polarity when connecting the new battery.
You may need to solder the old cable end/plug to the new battery.

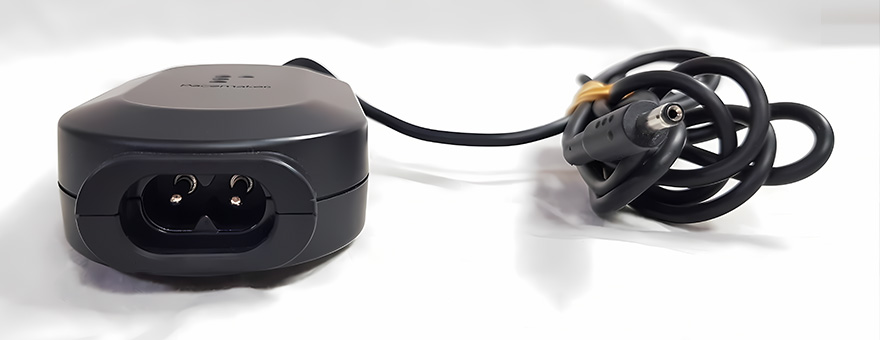

Power adapter
You can charge the Pacemaker Device using the Mini USB port on the top or the DC input jack on the bottom.
An original DC power adapter is included with the P211 model.
If you want to buy a power adapter or USB DC cable for your model P666 device or a replacement for your P211 device.
Here are the specifications:
DC Plug
Length: 9mm
Outer width: 3.5mm
Inner width: 1.35mm
Required power
5V 2A

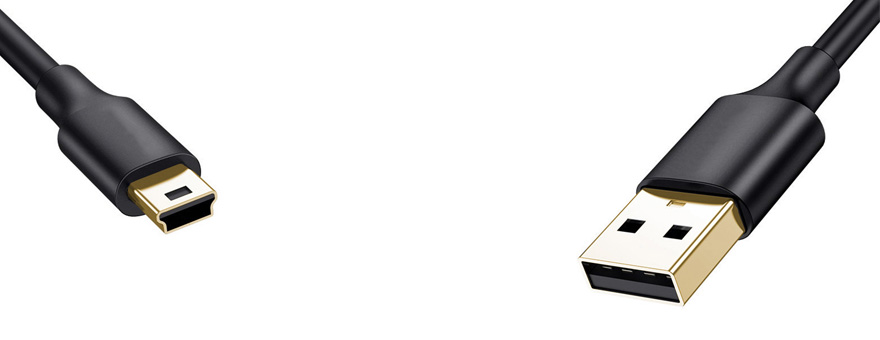

USB cable
The Pacemaker Device is using a Mini USB cable for data transfer and power.
